Rail

CONFORMING TO DYNAMIC CAPACITY WITHIN EN 15551 AND UIC 526 CAT C 70KJ MIN @ 1000KN FORCE 105MM INSTALLED STROKE.

The 105mm stroke buffer was designed to meet the requirements of UIC 526 Cat C dynamic characteristics.The units operate mainly as side buffers on freight vehicles with 105mm stroke.

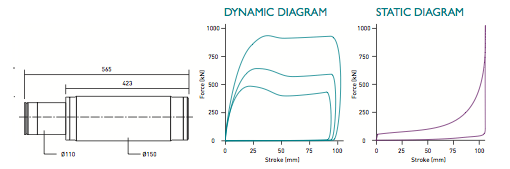

• Buffer type: Type 5-105

• Capacity: 80kJ @1000kN force

• Ultimate capacity: 200kJ

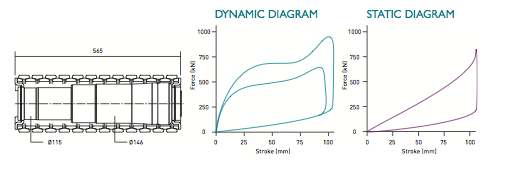

• Buffer type: Type Uni plus 105

• Capacity: 80kJ @1000kN force

• Ultimate capacity: 160kJ

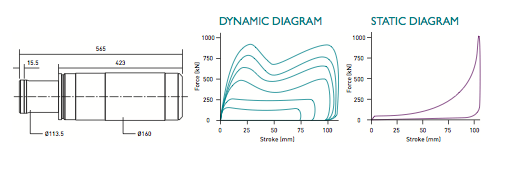

• Buffer type: Type 3RCC (combination)

• Capacity: 70kJ @1000kN force

• Ultimate capacity:117kJ

These buffers fit forged steel casings and European cast steel casings.
