Sliding friction hydraulic buffer stop designs – small frame for lower speeds

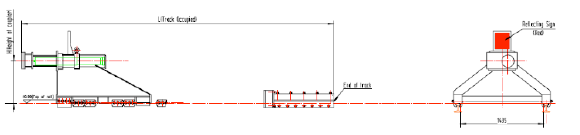

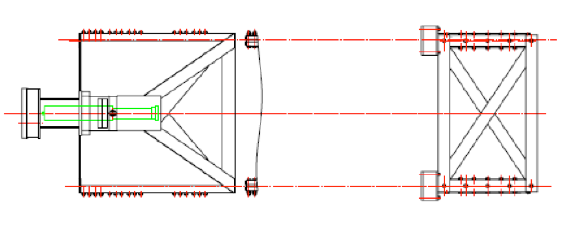

Sliding friction hydraulic buffer stop small frame Sliding friction hydraulic buffer stop small frame

  • Contains one Oleo Type 9 hydraulic buffer and one set of XCD fixed stop friction shoes.

  • Impacting point from the top of rail (coupler height) mm (720 – 660 – 824)

Examples for conditions and installation length:
(1) 8 Cars

  • For cars with passengers. Train mass: 510t, Impacting speed: 15km/h, Installation length: 15m, Impact capacity: 224kJ Recoverable Stroke: 400mm.

  • For cars without passengers. Train mass: 300t, Impacting speed: 15km/h, Installation length: 15m, Impact capacity: 224kJ, Recoverable Stroke: 400mm.

(2) 6 Cars

  • For cars with passengers. Train mass: 369t, Impacting speed: 15km/h, Installation length: 15m, Impact capacity: 224kJ, Recoverable Stroke: 400mm.

  • For cars without passengers. Train mass: 220t, Impacting speed: 15km/h, Installation length: 15m, Impact capacity: 224kJ, Recoverable Stroke: 400mm.
