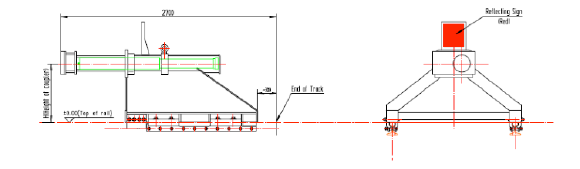

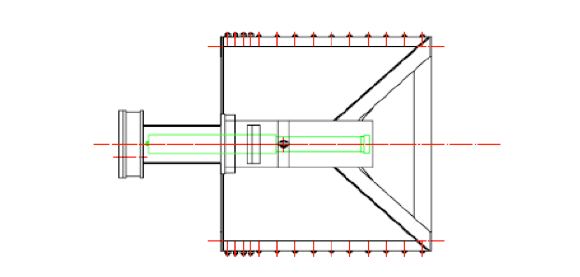

Contains one Oleo Type 76 hydraulic buffer.
Impacting point from the top of rail (coupler height) mm (720 – 660 – 824)
Maximum energy absorbed by buffer: 336kJ
End force: 700kN
Recoverable stroke: 600mm
Examples for conditions and installation length:
(1) 8 Cars
Depot or maintenance workshop. Train mass: 300t, Impacting speed 5km/h, Installation length: 2.7m, Impact capacity: 336kJ, Recoverable stroke: 600mm.
(3) 6 Cars
Depot or maintenance workshop Train mass: 220t, Impacting speed 6km/h, Installation length 2.7m, Impact capacity: 336kJ, Recoverable stroke: 600mm.

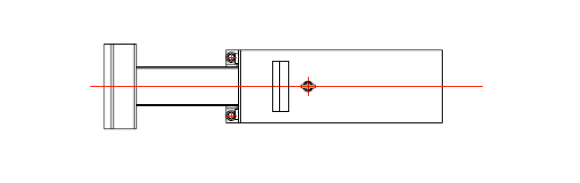

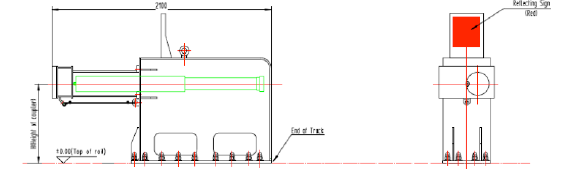

Contains One Oleo Type 76 hydraulic buffer and one set of steel embedded part.
Reinforced concrete base for steel embedded part needed.
Impacting point from the top of rail (coupler height) mm (720 – 660 – 824)
Maximum energy absorbed by buffer: 336kJ
End force: 700kN
Recoverable stroke: 600mm
Examples for conditions and installation length:
(3) 8 Cars

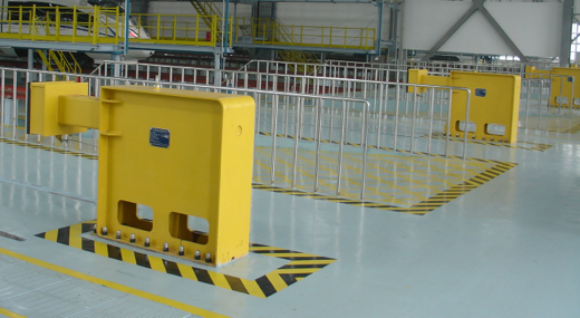

Depot or maintenance workshop – parking area. Train mass: 300t, Impacting speed 5km/h, Installation length: 2.1m, Impact capacity: 336kJ, Recoverable stroke: 600mm.
(4) 6 Cars
Depot or maintenance workshop – parking area. Train mass: 220t, Impacting speed 6km/h, Installation length 2.7m, Impact capacity: 336kJ, Recoverable stroke: 600mm.
