Leading the world in
energy absorption

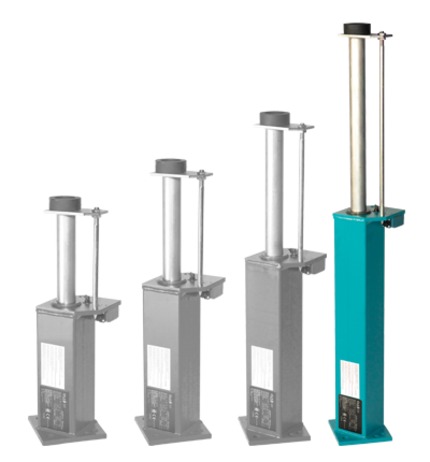

The SEB gas hydraulic buffer series provides a premium robust solution for medium speed applications.
A self contained, maintenance free* unit designed to weigh approximately half of a conventional buffer and have a small space envelope. This means that shipping costs are significantly reduced and allows for quick and easy
installation.
The SEB series is designed and built according to strict engineering standards and is universally approved and globally certified.
*other than statutory inspections.
Related documents
| Metric | Imperial | |
|---|---|---|
| Rated speed | 2.54 m/s | 500 ft/min |
| Maximum speed (115%) | 2.92 m/s | 575 ft/min |
| Stroke 'S' (min.) | 435 mm | 17.13 in |
| Impact mass range | 450-4545 kg | 992-10020 lbs |

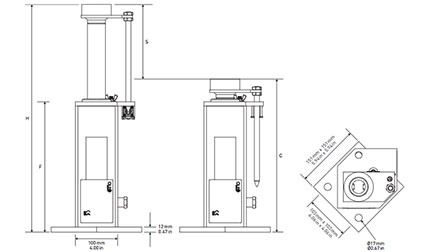

| Height 'H' max. (extended) | 1126.5 mm | 44.4 in |
| Height 'C' min. (compressed) | 674.3 mm | 26.5 in |
| Height 'F' to reservoir top | 631.0 mm | 24.8 in |
| Weight no oil (dry) | 20.0 kg | 44.1 lbs |
| Oil volume | 3.3 litres | 0.9 gallons |
| Reduced stroke: Rated speed with terminal speed limiting device, based on EN81.1 rule 10.4.3.2 and ASME A17.1 rule 2.22.4.1.2 | ||
| Reduced stroke ASME A17.1 | 3.59 m/s | 706 ft/min |
| Reduced stroke EN81.1 | 3.59 m/s | 706 ft/min |
