Leading the world in
energy absorption

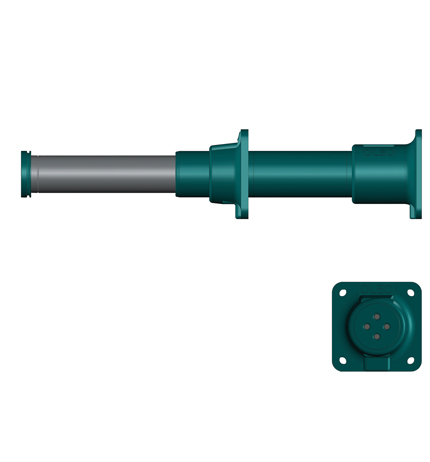

The Type 9 was initially developed for overhead cranes in steel mills it is a high capacity, long life unit.The Type 9 is now typically used on dockside cranes and for end stops.Type 9’s have been used on specialised applications on the water such as wave power converters using special water tight seals and stainless steel parts for anti corrosion.

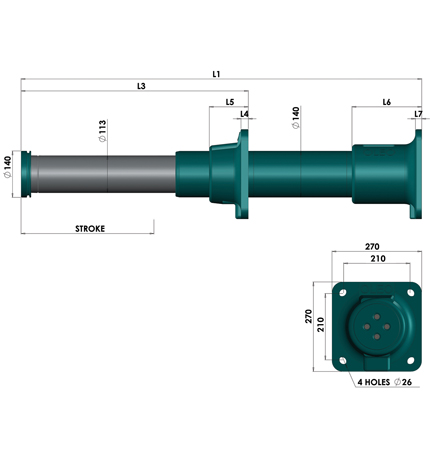

| Metric | |
|---|---|
| Stroke | 400 mm |
| Dynamic Capacity | 224 kJ |
| Maximum End Force | 700 kN |
| Static Start Force | 12 kN |
| Static End Force | 155 kN |
