Industrial | Type 4

Type 4

Type 4 (Type 4)

Product Description

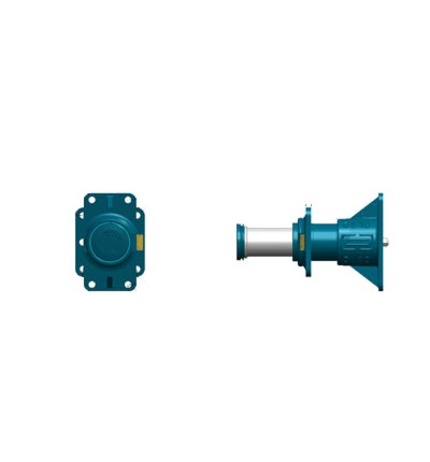

The Type 4 is a high capacity, short stroke unit.This was one of the first industrial buffers to be developed by Oleo which evolved from a Type 4 rail buffer. It has a very long life it is not uncommon to find Type 4 units still in use which are over 25 years old.The Type 4 buffers can be used in various business sectors but traditionally are used in steel works.These buffers are also used on drawbridge applications, car dumpers where coal is being transported and in stacker re-claimers where high masses are moving very slowly.

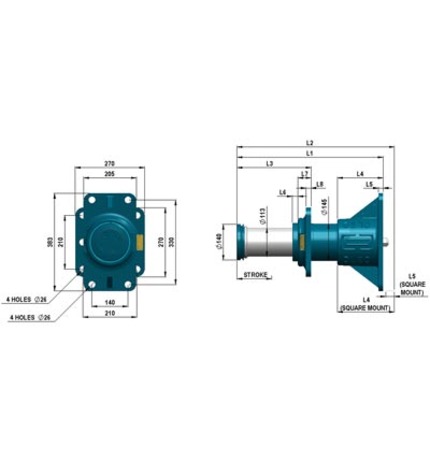

  Metric
Stroke 140 mm
Dynamic Capacity 91 kJ
Maximum End Force 1000 kN
Static Start Force 12 kN
Static End Force 120 kN
