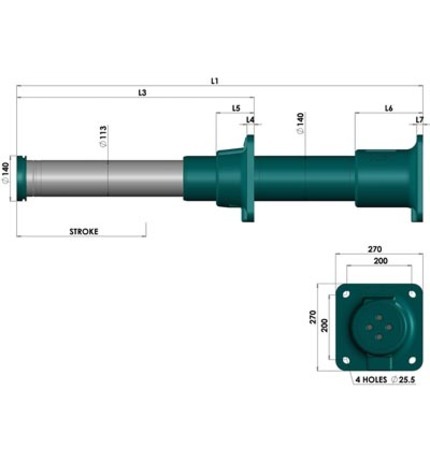

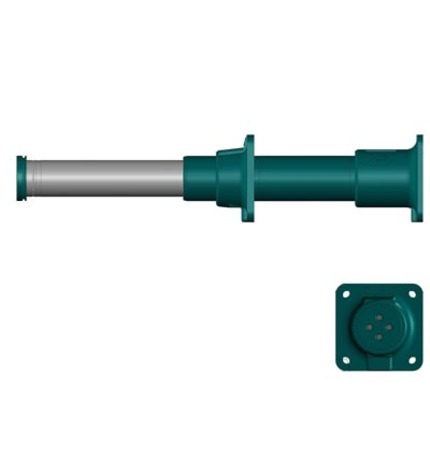

The type 23 is a slightly longer version of the type 9, which allows the static end force to be reduced for applications where the buffer needs to be fully compressed at low speeds.
Metric | |
---|---|
Stroke | 400 mm |
Dynamic Capacity | 224 kJ |
Maximum End Force | 700 kN |
Static Start Force | 12 kN |
Static End Force | 85 kN |
